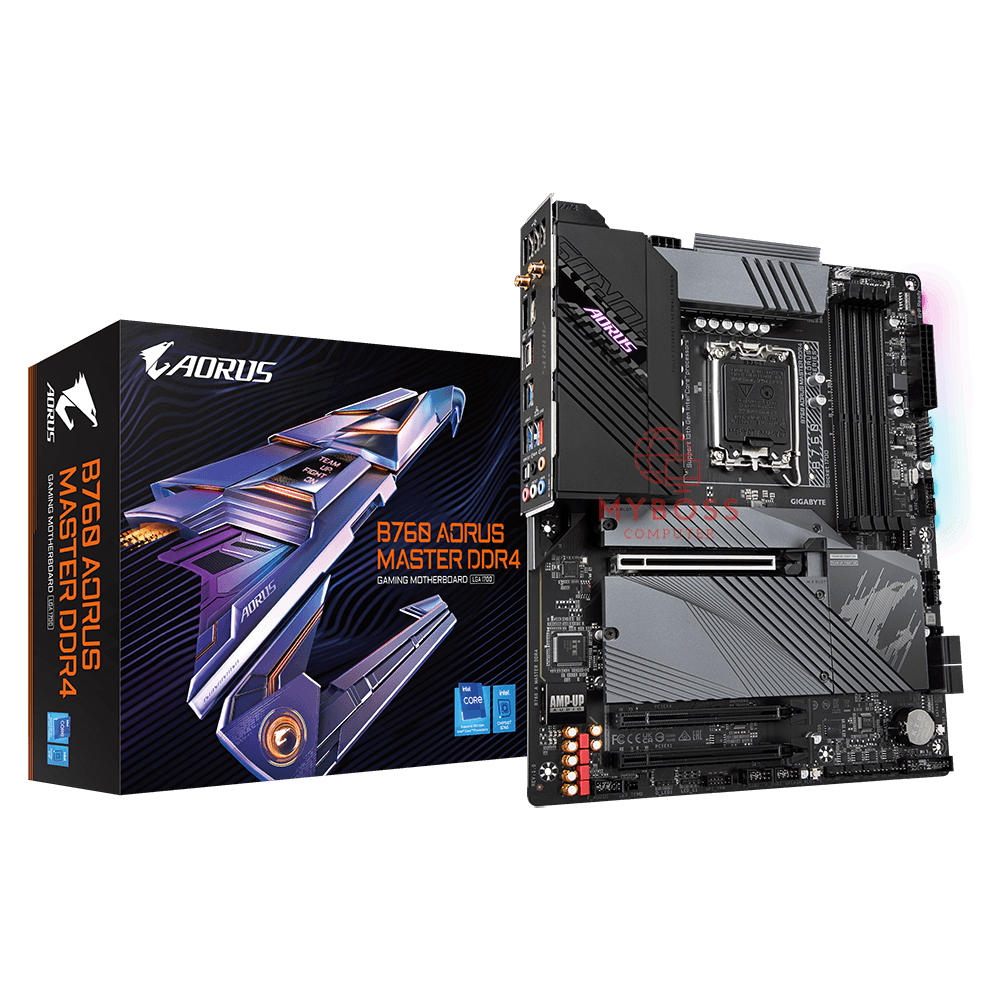

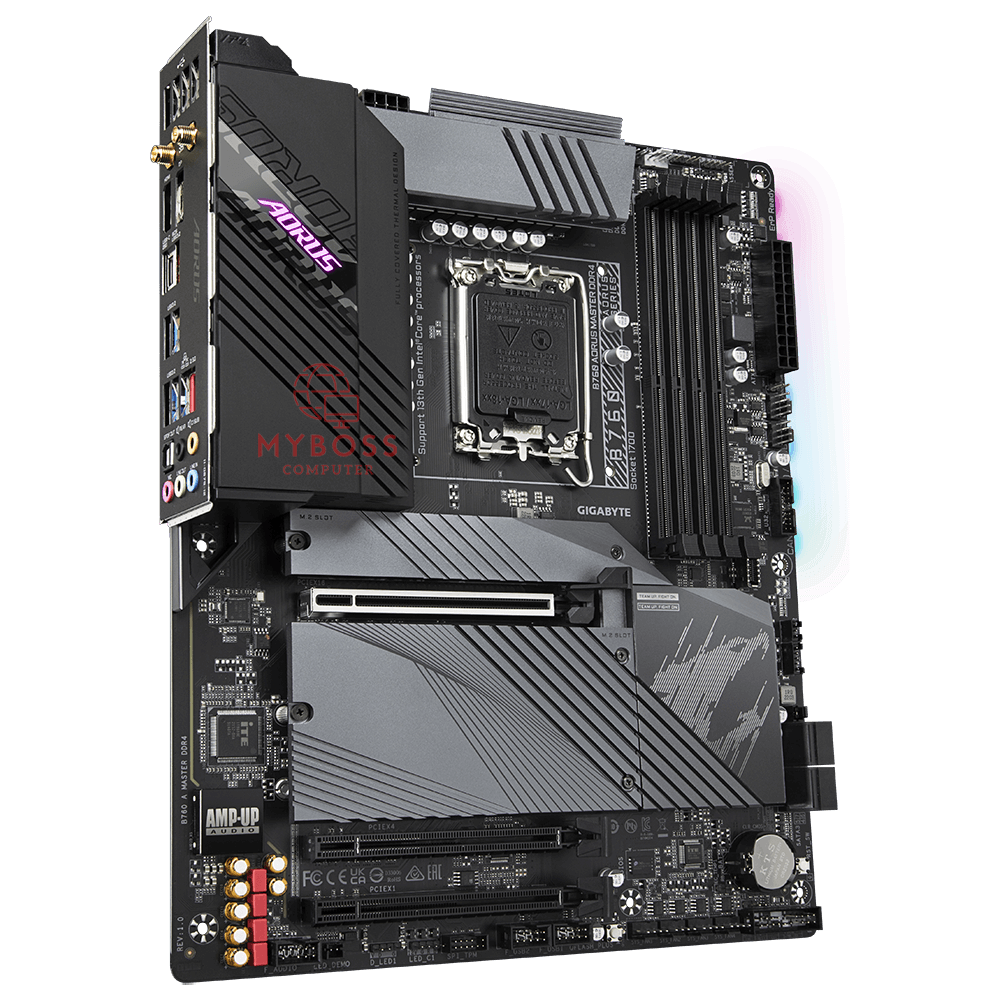

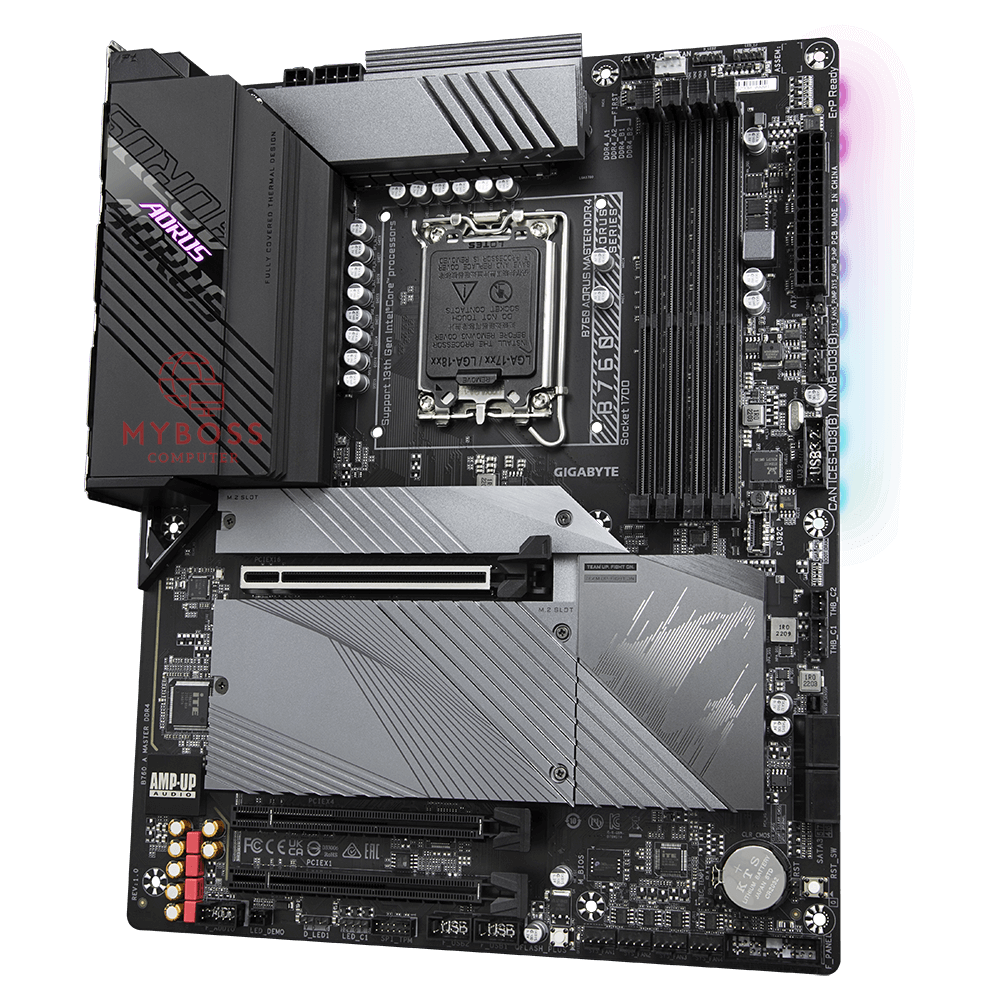

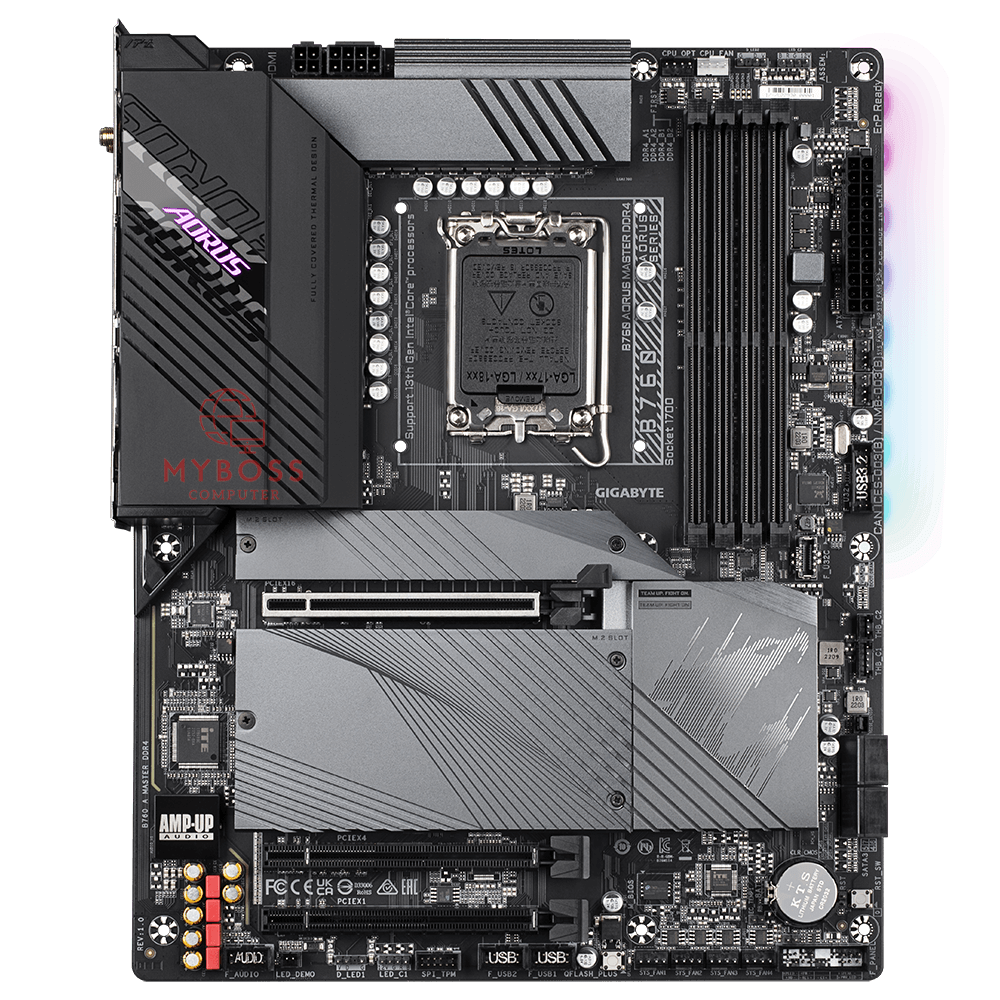

Mainboard Gigabyte B760 AORUS MASTER DDR4 (Intel B760, Socket 1700, ATX, 4 khe Ram DDR4)

6.899.000VNĐ

Mã:

Thương hiệu: Gigabyte

Bảo hành: 36 Tháng

Lượt xem: 5181

Tình trạng: Còn hàng

Số lượng

Chi tiết

THÔNG SỐ KỸ THUẬT

Sản phẩm

Bo mạch chủ

Tên Hãng

Gigabyte

Model

B760 Aorus Master DDR4

CPU hỗ trợ

Intel

Chipset

B760

RAM hỗ trợ

Support for DDR4 5333(O.C.) / 5133(O.C.) / 5000(O.C.) / 4933(O.C.) / 4800(O.C.) / 4700(O.C.) / 4600(O.C.) / 4500(O.C.) / 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2666 / 2400 / 2133 MT/s
4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory

Khe cắm mở rộng

1 x PCI Express x16 slot, running at x16 (PCIEX16)
1 x PCI Express x16 slot, running at x4 (PCIEX4)
1 x PCI Express x16 slot, running at x1 (PCIEX1)

Ổ cứng hỗ trợ

CPU:
1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2M_SB)
4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

Cổng kết nối (Internal)

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x 4-pin ATX 12V power connector
1 x CPU fan header
1 x CPU fan/water cooling pump header
4 x system fan headers
2 x system fan/water cooling pump headers
2 x addressable LED strip headers
2 x RGB LED strip headers
3 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x noise detection header
2 x Thunderbolt™ add-in card connectors
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1 x reset button
1 x Q-Flash Plus button
1 x reset jumper
1 x Clear CMOS jumper
2 x temperature sensor headers

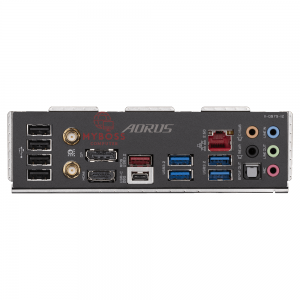

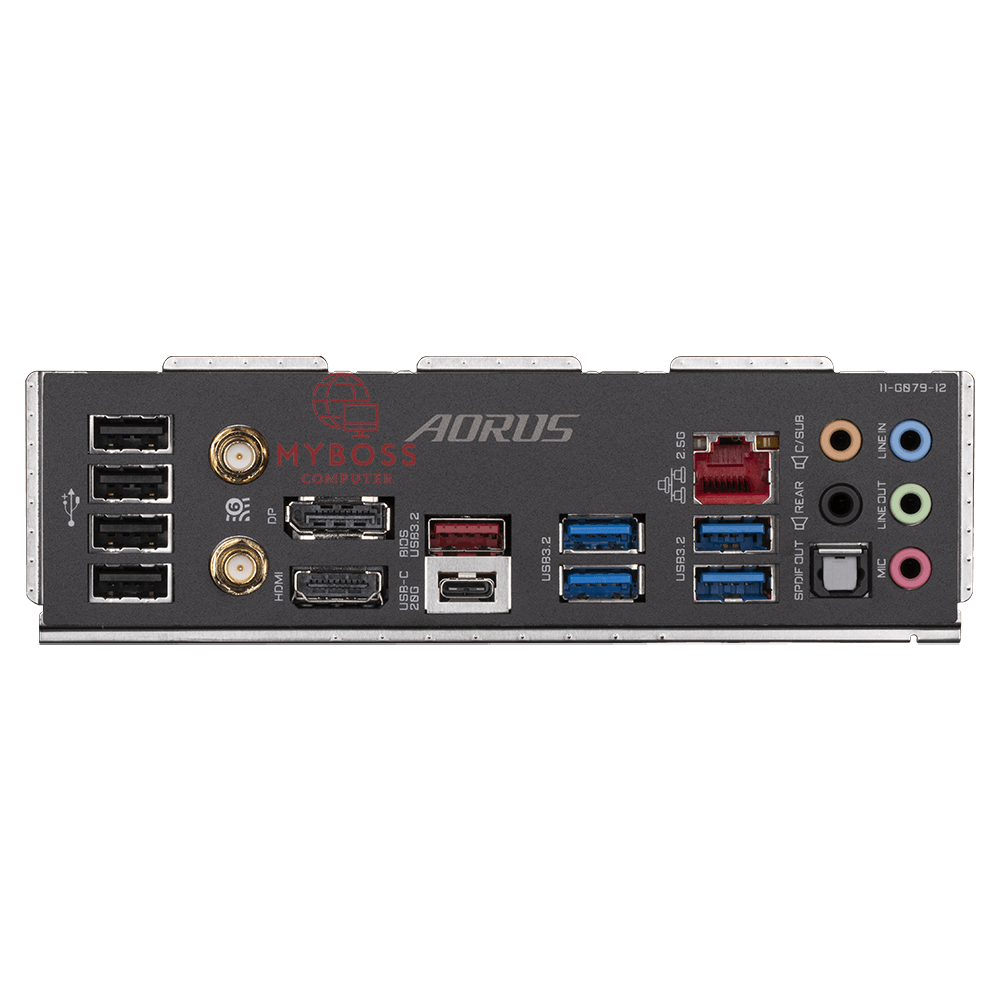

Cổng kết nối (Back Panel)

1 x USB Type-C® port, with USB 3.2 Gen 2x2 support
1 x USB 3.2 Gen 2 Type-A port (red)
4 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
2 x SMA antenna connectors (2T2R)
1 x DisplayPort
1 x HDMI port
1 x RJ-45 port
1 x optical S/PDIF Out connector
5 x audio jacks

LAN / Wireless

Intel® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Intel® Wi-Fi 6E AX211
WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
BLUETOOTH 5.3
Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate

Kích cỡ

ATX Form Factor; 30.5cm x 24.4cm
